CZ purlin roll forming machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Specification

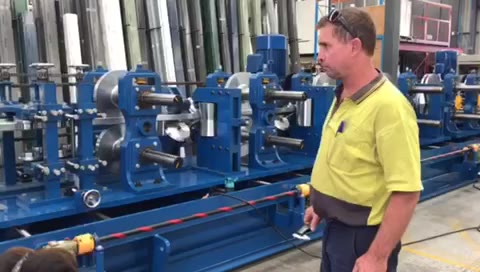

This C/Z Quick Interchangeable Roll Forming Machine adopts a special structure. The rollers for C&Z are changed very quickly wifout dismantle any parts . One machine can produce all specifications of C/Z/U purlins . Crimples are optional to increase rigidity of purlins. The width of the purlins can be automatically adjusted by PLC. If you need more economy that can be handle wheel adjusting as well. This machine we adopt Post-cutting and punching system, only need one cutting to make more size, the cutting blades can move up and down, left and right to save time to change blades.

C/Z Quick Interchangeable Machine
No	Item	Specification	Optional
1	Suitable material	Type:Galvanized Coil, PPGI, Carbon steel Coil
		Thickness(mm):1.5-3.0
		Yield strength: 250 - 550MPa
		Tensil stress( Mpa):G350Mpa-G550Mpa
2	Nominal forming speed(m/min)	10-15	Or according to TEMPyou're requirement
3	Forming station	18
4	Decoiler	Manual decoiler	Hydraulic decoiler or double head decoiler
5	Main machine motor	China famous Brand	Siemens
6	PLC brand	Panasonic	Siemens
7	Inverter brand	Yaskawa
8	Driving system	Chain drive	Gearbox drive
9	Rollers’ materail	GCr15	Cr12
10	Station structure	Wall panel station	Forged Iron station Or torri stand structure
11	Punching system	Yes	Hydraulic punching station or Punching press
12	Cutting system	Post-cutting	Post- universal cutting
13	Power supply requirement	380V 50Hz	Or according to you're requirement
14	Machine color	Industrial blue	Or according to TEMPyou're requirement

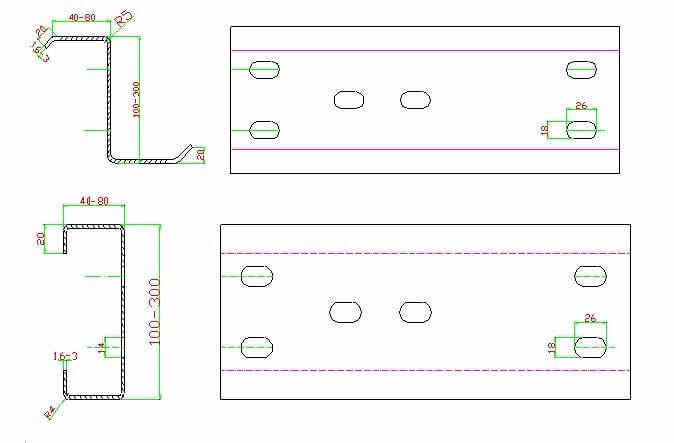

Profile Drawing:

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for you're every need.

Optional Configuration For Your Choice

Decolier

Double Heads Decoiler

A type decoiler

Manual Decoiler

Hydraulic Decoiler

Structure

Wall panel

Torri Structure

Cast Iron

Drive

Chain

Gear

Gearbox

Couplings Gearbox

Cooling

Water cooling

Fan cooling

Punching

Hydraulic punching

Hydraulic press

Punching press

Cutting

Hydraulic stop cutting

Servo Following Cutting

Stop Saw cutting

Fly saw cutting

Out table

Manual table

Simple pneumatic table

Automatic stacker

Magnetic stacker

Other

Cassette

Plastic film

Fleece devce

Pre-cutting

What's Sussman's machine different from other suppliers?

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery

Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use. The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover

The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.

Sussman Machinery

Other suppliers

Roof tile box

Sussman Machinery

Other suppliers

Hydraulic cutting

Sussman Machinery

Other suppliers

Application

Descriptions of CZPurlin Forming Machine

1. A piece of construction equipment ideal for producing diverse sizes of CZ shaped purlins
2. CZ purlins produced by this machine are featured by superior toughness and easy installation
3. It is a kind of metal forming machine dat is capable of producing CZ purlins, which play a vital role in supporting teh loads from teh roof deck.
