Colombia Popular Roof Tile Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

Technology Index
Cutting distance≥150mm
Temperature of the working environment of the production line: 0—40 Celsius
Humidity of the working environment of the production line: 5-85 (No dew)
Working Voltage: Three Phase Voltages 380V (AC)
Working Environment: No corrosive gases, less dust.
Error of Cutting Distance of Glazed Tile: ±1-2mm

Main description
Roll Forming Machine: CLASIC
Control System: PLC:( Panasonic)

Un-coiler:
Un-Coiler: 5 ton manual
De-coiling Holder: 2200mm×1620mm×1700mm
inside diameter of the uncoiler:510-610mm

Roll forming machine:
Color Steel Sheet Thickness: Color Sheet 0.3~0.8mm
Color Steel Sheet width: 1220mm
Roller Stations: about 13 stations
Way of Drive: Gearbox Drive
The speed of the roll forming machine:0-15m/min
Roller Material: 40Cr steel, coated with chrome
Shaft Material and DIA:76mm, material is 45# forge steel
Maim Motor Power: 7.5kw
Error of Cutting Distance of Glazed Tile: ±1-2mm
Roll Forming Machine: 8700mm×1622mm×1400mm
Roll Forming Machine: 8000kg

Press parts:
Type: Hydraulic
Hydraulic Station Power: 4kw
Size of the press parts: 2000*1800*1500mm

Cutting parts:
Type: Hydraulic
Max. Cutting thickness: 0.8mm
Hydraulic Station Power: 5.5kw
Automatic Hydraulic Cutting Machine: 400mm×1500mm×1100mm
Material Of Cutting: Cr12Mov quenching 58-62℃
Automatic Hydraulic Cutting Machine: 400kg

Out table:
Size of the out table: 4000*1350*1200mm

Equipment Constitution
A. Decoiling Holder
B. Membrane Apparatus
C. Color Steel Sheet Molding Machine
D. Corrugating Molding Block Press Machine
E. Molding Shears
F. Out table

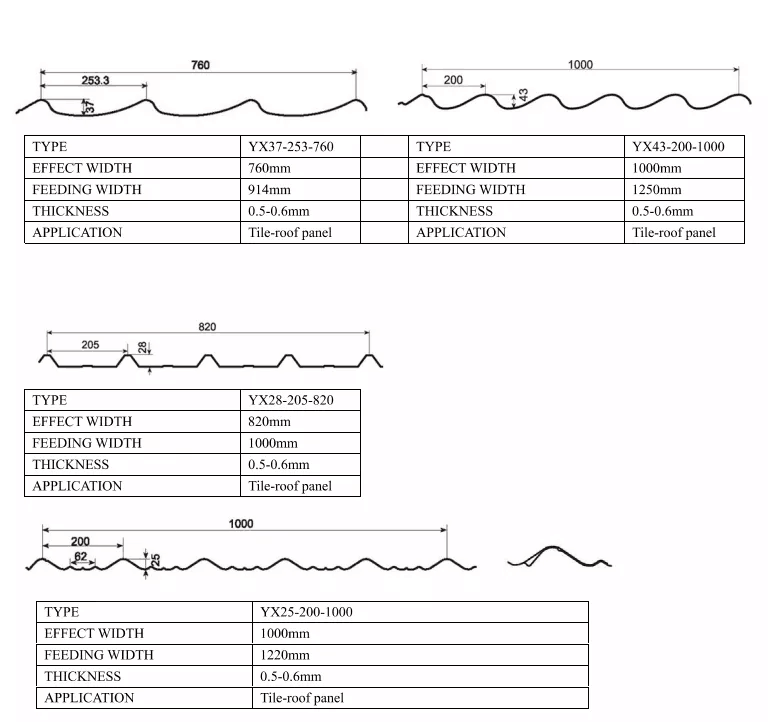

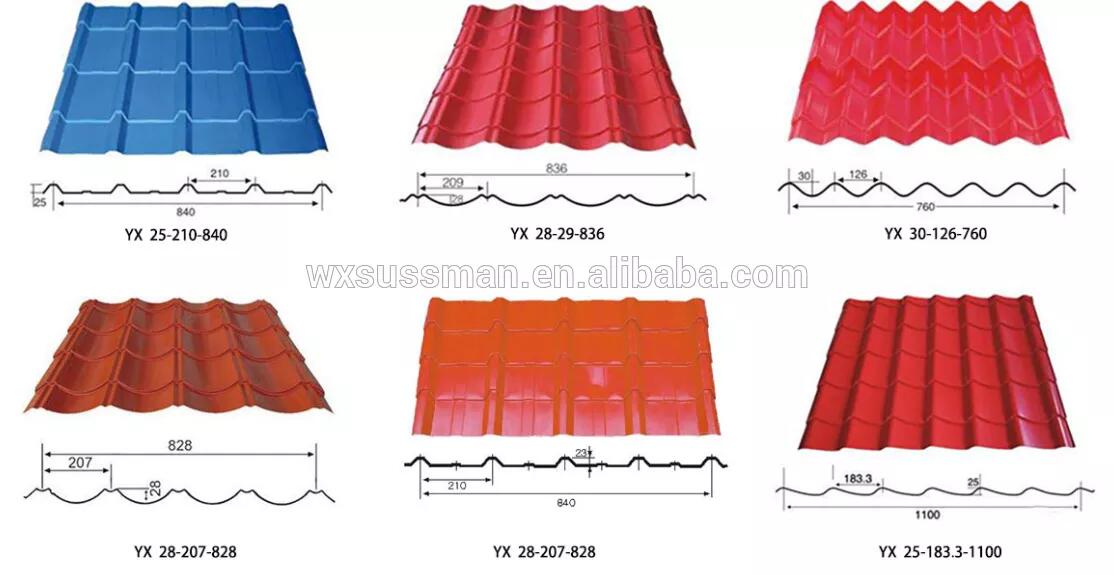

Profile Drawing
