Cable Tray Ladder Roll Forming Machine
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Product description
Description
1 Suitable for szie: 100*30*10, 60*18
2 Thickness: 1.2-2.0mm3 Line speed: 10 m / min.
4 Roll number: 13 stations
5 roller material: high quality Gcr15 bearing steel after quenching and tempering quenching and tempering process, the surface hard chromium plating.
6 Shaft material: 45# steel quenching and tempering, shaft diameter of 60 mm.
7 Main motor power: 7.5kW
8 Transmission: chain drive.
9 Cut off: hydraulic fixed.
10 Hydraulic station motor power: 7.5KW external installation
11 Electronic control system: the whole machine adopts PLC frequency conversion control, touch screen display value, OMRON rotary encoder.
12 voltage: 380V, 50HZ, 3 phase
13 Equipment size: about 7.8 m *0.8 m *1.2 M
Working flow
De coiler- leveling—servo feeding---Punching--Roll forming-Cutting-Out table
Optional Configuration For Your Choice
-
DecolierDouble Heads Decoiler
A type decoiler
Manual Decoiler
Hydraulic Decoiler
-
StructureWall panel
Torri Structure
Cast Iron
-
DriveChain
Gear
Gearbox
Couplings Gearbox
-
CoolingWater cooling
Fan cooling
-
PunchingHydraulic punching
Hydraulic press
Punching press
-
CuttingHydraulic stop cutting
Servo Following Cutting
Stop Saw cutting
Fly saw cutting
-
Out tableManual table
Simple pneumatic table
Automatic stacker
Magnetic stacker
-
OtherCassette
Plastic film
Fleece devce
Pre-cutting
Why Sussman Different
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.
Our display screen is touch screen, not text touch screen.
Sussman Machinery
Other suppliers
Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use. The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.
Sussman Machinery
Other suppliers
Sussman roll forming system
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
Sussman Machinery's safety cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
Sussman Machinery
Other suppliers
Roof tile box
Sussman Machinery
Other suppliers
Hydraulic cutting
Sussman Machinery
Other suppliers
Machine list
3 Tons manual decoiler
Post cutting device
Levelling device
Servo feeding
Punching mould
Roll forming machine
Control box
Cassette
Out tables
Post cutting device
Levelling device
Servo feeding
Punching mould
Roll forming machine
Control box
Cassette
Out tables
Our service
We have professional team to make different kinds of roll forming machines for our customers, from designing, processing, assembling, debugging,delivery.
Guarantee period: 12 months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use thenmachine, and also train your workers or technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Guarantee period: 12 months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use thenmachine, and also train your workers or technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Application

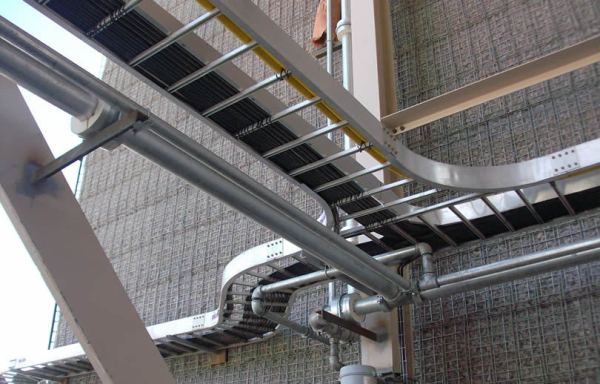

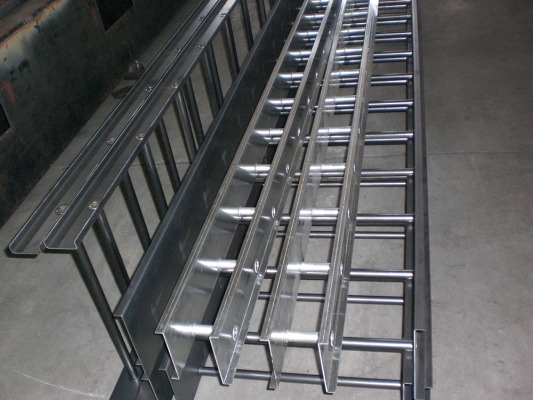

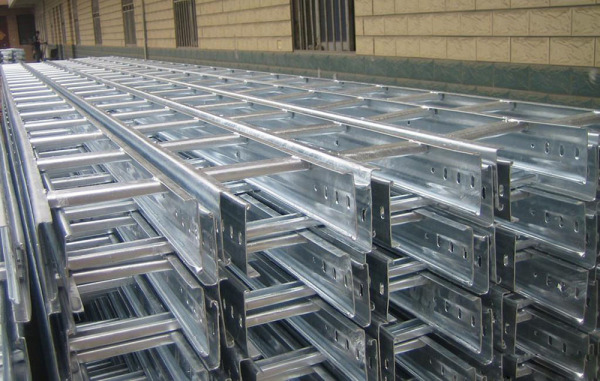

A cable tray system, is a unit or assembly of units or sections and associated fittings forming a rigid structural system used to securely fasten or support cables and raceways." Cable trays are used to hold up and distribute cables. Cable tray roll forming machine is special designed for its production.

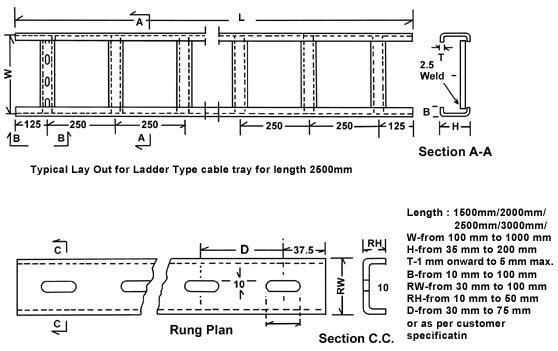

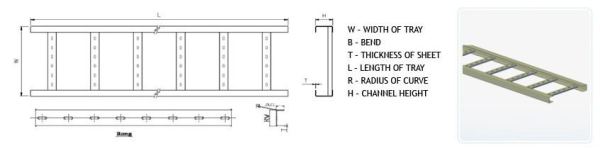

Profile drawings for options
