200-600 mm Width Adjustable Shelf Panel Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specification
Description

Warehouse shelf upright system roll forming machine is widely used to produce upright frame, shelf panel, back panel/ board, box beam and step beam machine, beam welding machine. Our roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other. The one and only step is to put your required data into our touch screen and wait for few seconds. Machinable thickness is from 1.5-3mm with raw material Cold-rolled Steel, Galvanized Coil, Carbon steel, and Aluminum. Our produced profile meet ISO, CE, FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.

We have experience of exporting our pallet racking system roll forming machine to Mexico, Bangladesh, Costa Rica, Russia, Dominica, etc. We make different solutions according to customersdrawing, tolerance and budget, offering professional one-to-one service.

1. Materials to form: According to the customers’ requirement Used for 200mm-600mm (one-sided slide-able, adjustable by electric)
2. Forming steps: About 18 steps
3. Material of rollers:GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: >¢150
4. Material of main shaft : 45# high quality steel (diameter>¢50)
5. Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
6. Cutting: Hydraulic cutting; quenching HRC58-62
7. Electronic control: PLC control
8. Dimension of machine: 12000mmX2000mmX900mm
10. Drive system: Chain drive, 7.5KW main motor power, working speed: 3-15m/min;
11. Welding structure: material of fixed beam and walking beam: hot-rolled steel, the base and rack are be gantry planer processing after welded, work platform is not allowed stress deformation; main machine table-board’s plainness <2mm/1000mm
12. Parts: Slide: imported from Japan; bearing: Zhonghang Brand of Harbin
13. Punching: Punching the holes at the press machine before forming the shapes
14. Bending: Bending after the hydraulic cutting
Optional Configuration For Your Choice
  • Decolier
    Double Heads Decoiler
    A type decoiler
    Manual Decoiler
    Hydraulic Decoiler
  • Structure
    Wall panel
    Torri Structure
    Cast Iron
  • Drive
    Chain
    Gear
    Gearbox
    Couplings Gearbox
  • Cooling
    Water cooling
    Fan cooling
  • Punching
    Hydraulic punching
    Hydraulic press
    Punching press
  • Cutting
    Hydraulic stop cutting
    Servo Following Cutting
    Stop Saw cutting
    Fly saw cutting
  • Out table
    Manual table
    Simple pneumatic table
    Automatic stacker
    Magnetic stacker
  • Other
    Cassette
    Plastic film
    Fleece devce
    Pre-cutting
Why Sussman Different
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery
Other suppliers
Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.
Sussman Machinery
Other suppliers
Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
Sussman Machinery
Other suppliers
Roof tile box
Sussman Machinery
Other suppliers
Hydraulic cutting
Sussman Machinery
Other suppliers
Application
For supper market, for warehouse, for the small market, for the racks, the cooling rooms.
With the production advantage of the shelving & storage racks Roll Forming Machine, an extensive catalogue of shelving, light duty shelving, warehouse shelving and racking for the home and office are developed rapidly

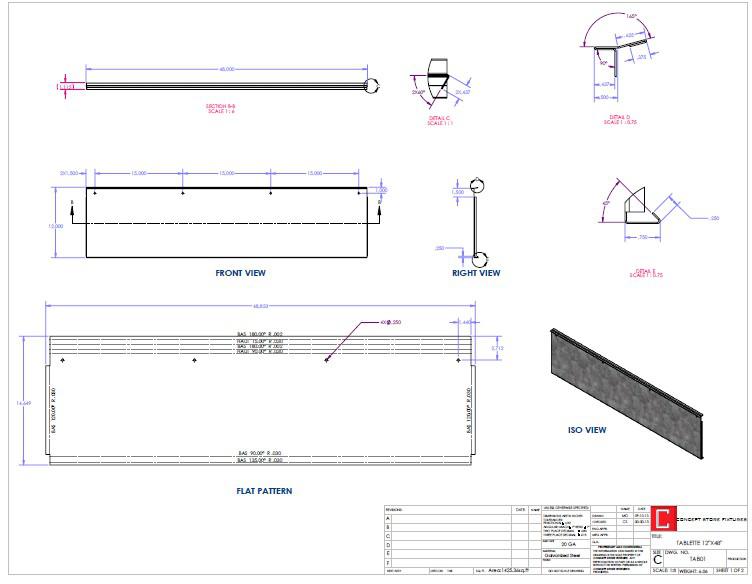

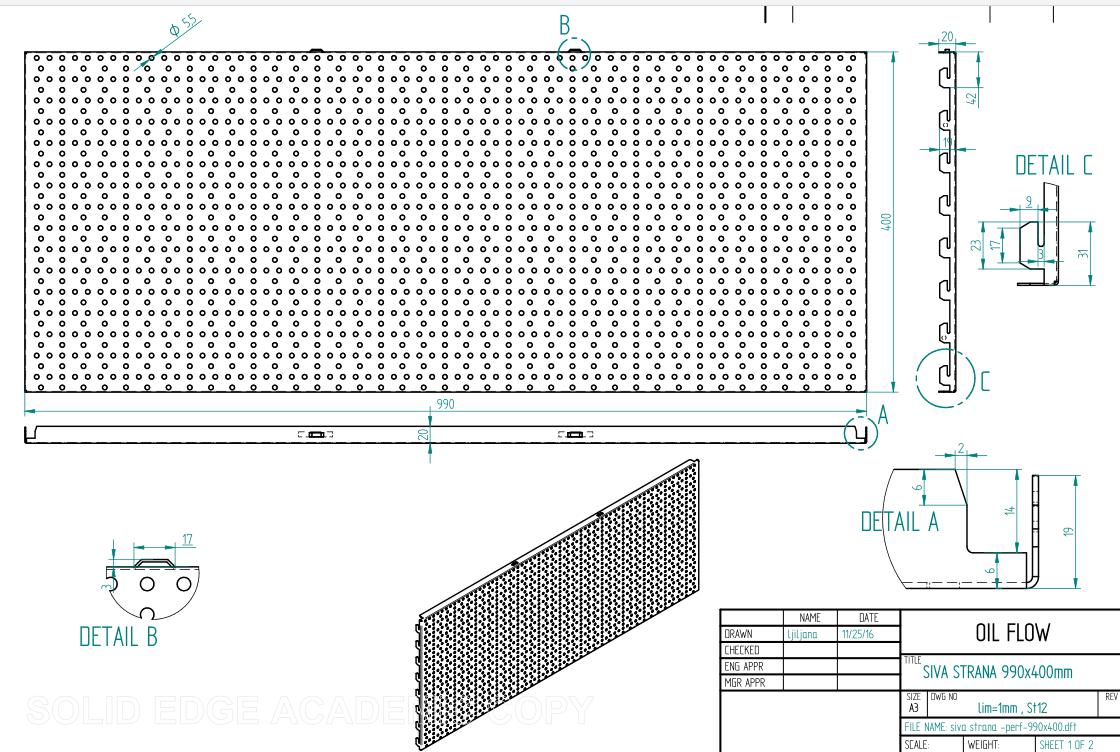

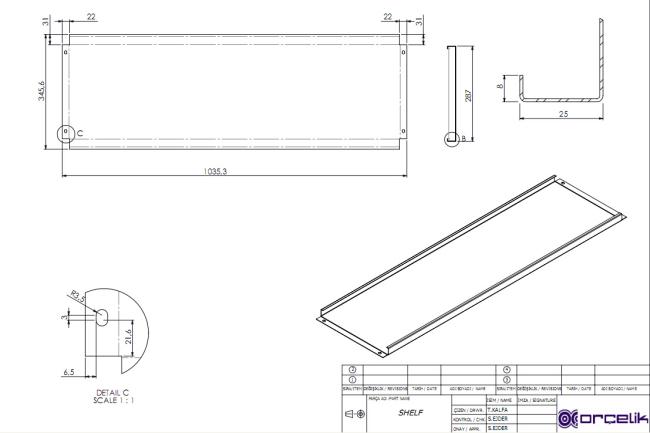

More profles for option
