Upright Rack Roll Forming Machine Technical Parameter


Upright Rack Machine’s Components


Profile Drawing

Upright Rack Profile drawing



1.Finished products:100*80mm



2.Raw material request: galvanized steel



3. We have experience of exporting our pallet racking roll formers to Mexico, Peru, Costa Rica, India, etc.



4. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need.



5. In warehouse pallet racking system, we are able to manufacture more machines like upright section roll forming machine and shelf panel roll forming machine etc.

Application

Pallet racking roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machineable thickness is from 1.5-3.0mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.

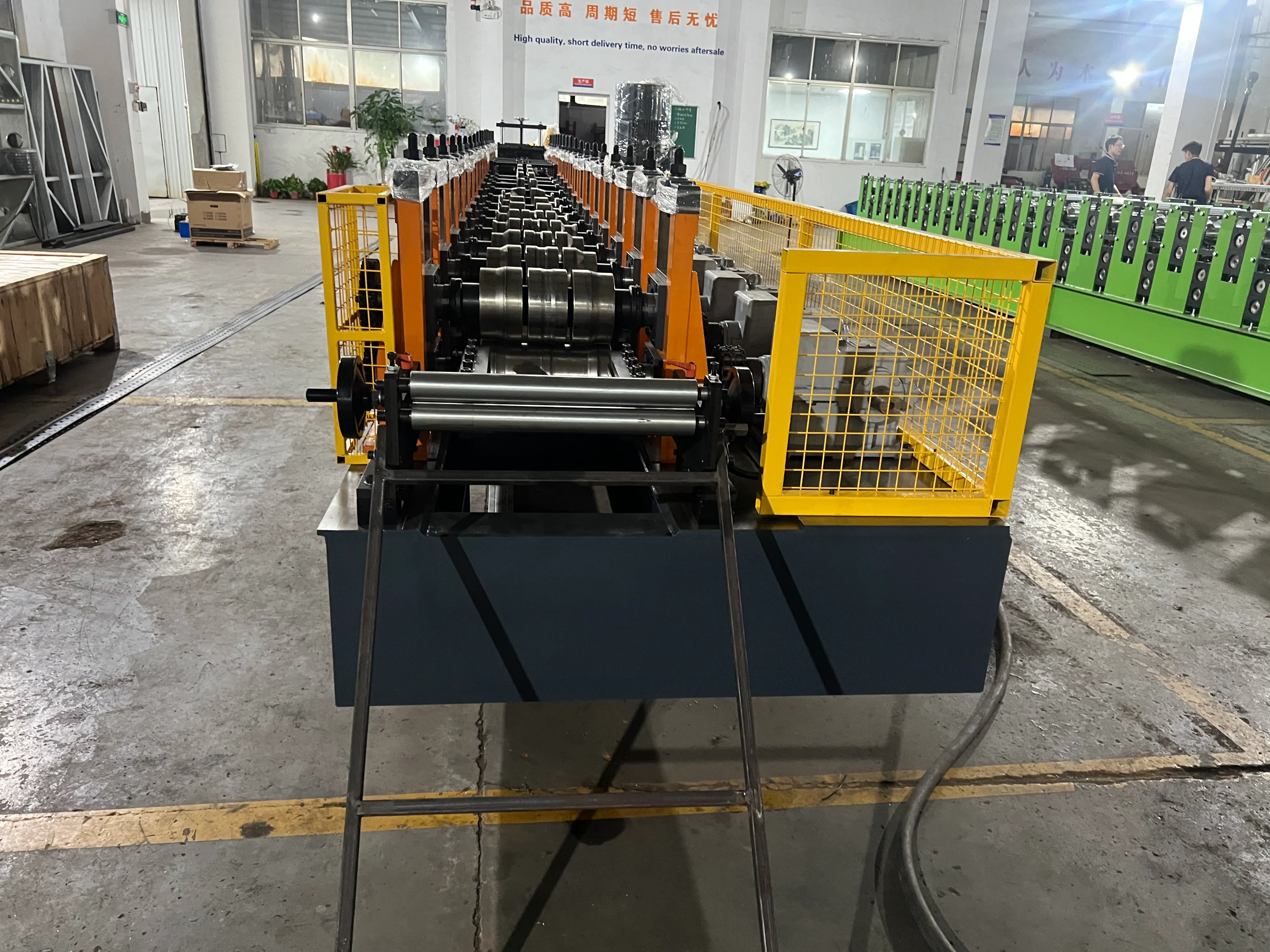

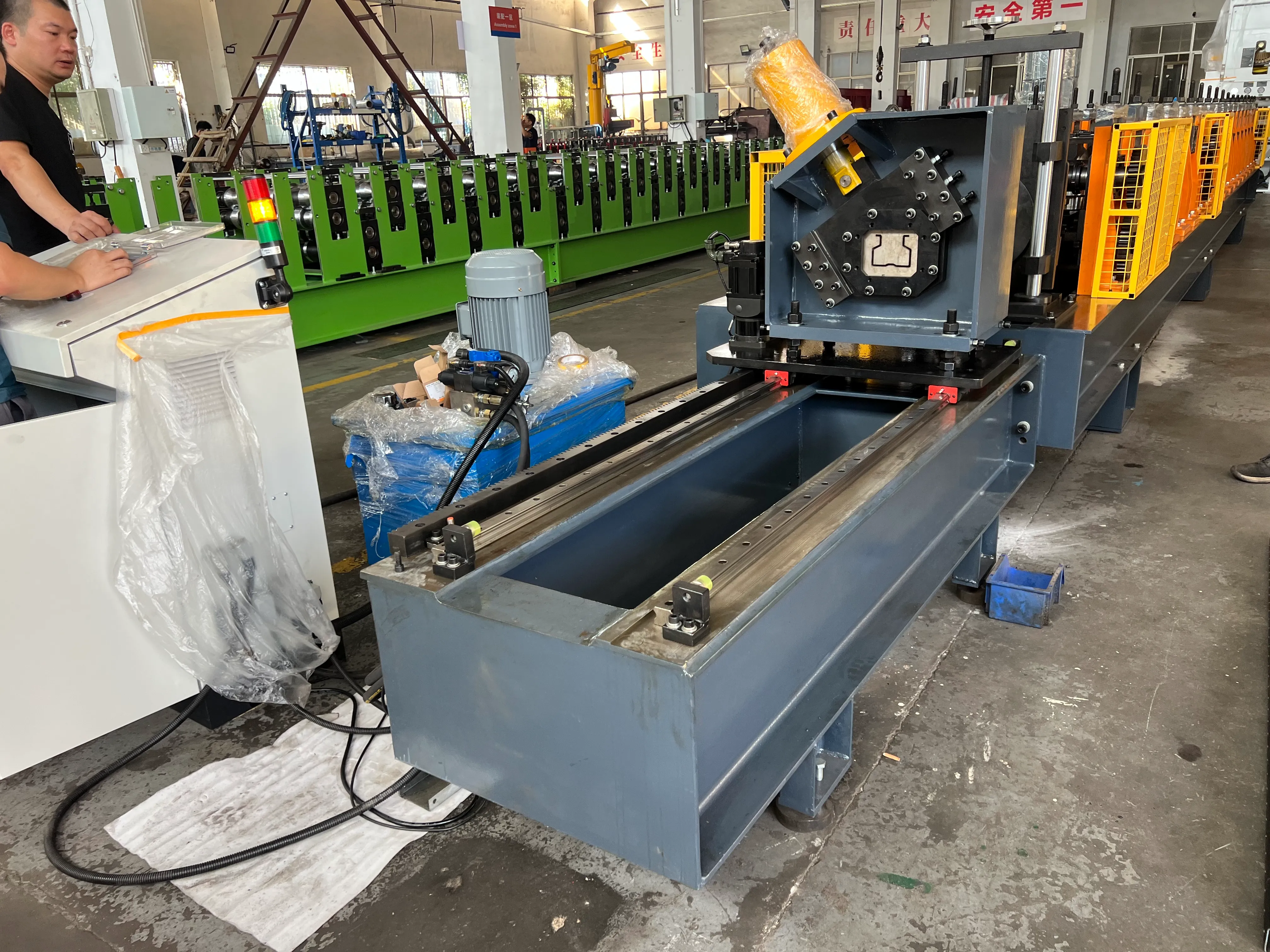

Upright Rack Machine Photo

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.







Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.



Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
